Sort of a Finite State Machine, but using blocks as delegates to decide what state to switch to based on an input (and to perform various side effects).

To setup, subclass the FiniteStateMathing, and define a series of states and blocks to handle input during that state. Each block must return either a new state to transition to, or nil if an end state has been reached.

To use, instantiate your subclass, set the state property of the machine to your starting state, and then repeatedly invoke the transition method, passing in the trigger to be handled by the blocks.

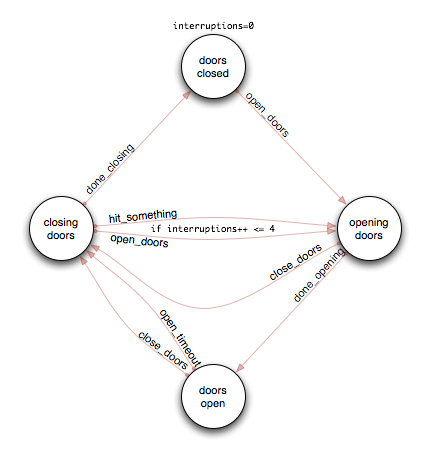

The following example shows how to implement a simple elevator door state machine. It shows how to use instance variables to keep track of extra information during state transitions, (the @interruptions variable) and use that information to influence the reaction to a trigger. It also shows that you can use instance methods (sound_alarm) to assist in the state machine processing.

 class ElevatorState < FiniteStateMathing
   def sound_alarm
     puts "***BUZZ!***"
   end

   handle_state( :doors_closed ) do |command|
     @interruptions = 0
     case command
       when :open_doors then :opening_doors
       else :doors_closed
     end
   end

   handle_state( :opening_doors ) do |command|
     case command
       when :done_opening then :doors_opened
       when :close_doors then :closing_doors
       else :opening_doors
     end
   end

   handle_state( :closing_doors ) do |command|
     case command
       when :done_closing then :doors_closed
       when :hit_something, :open_doors
         if ( @interruptions += 1) > 4
           sound_alarm
           :closing_doors
         else
           :opening_doors
         end
       else :closing_doors
     end
   end

   handle_state( :doors_opened ) do |command|
     case command
       when :close_doors, :open_timeout
         :closing_doors
       else :doors_opened
     end
   end
 end

 valid_commands_per_state = {
   :doors_closed =>  [ :open_doors, :close_doors ],
   :opening_doors => [ :open_doors, :close_doors, :done_opening ],
   :doors_opened =>  [ :open_doors, :close_doors, :open_timeout ],
   :closing_doors => [ :open_doors, :close_doors, :done_closing, :hit_something ]
 }
 door_controller = ElevatorState.new( :doors_closed )

 11.times{
   valid_commands = valid_commands_per_state[ door_controller.state ]
   command = valid_commands[ rand( valid_commands.length ) ]
   print "#{door_controller.state}\n+ #{command} => "
   door_controller.transition( command )
 }
 print "#{door_controller.state}"

 #=> doors_closed
 #=> + open_doors => opening_doors
 #=> + done_opening => doors_opened
 #=> + open_timeout => closing_doors
 #=> + open_doors => opening_doors
 #=> + close_doors => closing_doors
 #=> + open_doors => opening_doors
 #=> + done_opening => doors_opened
 #=> + open_timeout => closing_doors
 #=> + open_doors => ***BUZZ!***
 #=> closing_doors
 #=> + open_doors => ***BUZZ!***
 #=> closing_doors
 #=> + close_doors => closing_doors
